PFED系列柱销式双联叶片泵

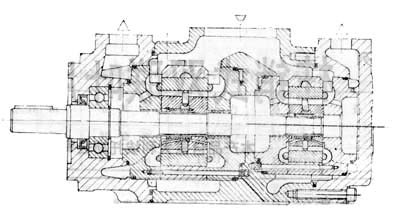

结 构 图
PFED-43外形尺寸(mm)
技 术 参 数
| 型 号 | 排量 | 额定压力 | 转速范围 | 重量 | |
| PFED--43 | 1º | 2º | |||
| PFED-43029/016 | 29.3 | 16.5 | 21 | 800-2500 | 24.5 |
| PFED-43029/022 | 21.6 | ||||
| PFED-43029/028 | 28.1 | ||||
| PFED-43037/016 | 36.6 | 16.5 | |||
| PFED-43037/022 | 21.6 | ||||
| PFED-43037/028 | 28.1 | ||||
| PFED-43037/036 | 35.6 | ||||
| PFED-43045/016 | 45.0 | 16.5 | |||
| PFED-43045/022 | 21.6 | ||||
| PFED-43045/028 | 28.1 | ||||
| PFED-43045/036 | 35.6 | ||||
| PFED-43045/044 | 43.7 | ||||
| PFED-43056/016 | 55.8 | 16.5 | |||
| PFED-43056/022 | 21.6 | ||||
| PFED-43056/028 | 28.1 | ||||
| PFED-43056/036 | 35.6 | ||||
| PFED-43056/044 | 43.7 | ||||
| PFED-43070/016 | 69.9 | 16.5 | |||
| PFED-43070/022 | 21.6 | ||||
| PFED-43070/028 | 28.1 | ||||
| PFED-43070/036 | 35.6 | ||||
| PFED-43070/044 | 43.7 | ||||
| PFED-43085/016 | 85.3 | 16.5 | 800-2000 | ||
| PFED-43085/022 | 21.6 | ||||
| PFED-43085/028 | 28.1 | ||||
| PFED-43085/036 | 35.6 | ||||
| PFED-43085/044 | 43.7 | ||||
PFED-54外形尺寸(mm)
技 术 参 数
| 型 号 |
排量 |
额定压力 |
转速范围 |
重量 | |
| PFED-54 | 1º | 2º | |||
| PFED-54090/029 | 90.0 | 29.3 | 21 | 700-2000 | 36 |
| PFED-54090/037 | 36.6 | ||||
| PFED-54090/045 | 45.0 | ||||
| PFED-54090/056 | 55.8 | ||||
| PFED-54090/070 | 69.9 | ||||
| PFED-54090/085 | 85.3 | ||||
| PFED-54110/029 | 109.6 | 29.3 | |||
| PFED-54110/037 | 36.6 | ||||
| PFED-54110/045 | 45.0 | ||||
| PFED-54110/056 | 55.8 | ||||
| PFED-54110/070 | 69.9 | ||||
| PFED-54110/085 | 85.3 | ||||
| PFED-54129/029 | 129.2 | 29.3 | |||
| PFED-54129/037 | 36.6 | ||||
| PFED-54129/045 | 45.0 | ||||
| PFED-54129/056 | 55.8 | ||||
| PFED-54129/070 | 69.9 | ||||
| PFED-54129/085 | 85.3 | ||||
| PFED-54150/029 | 150.2 | 29.3 | 700-1800 | ||
| PFED-54150/037 | 36.6 | ||||
| PFED-54150/045 | 45.0 | ||||
| PFED-54150/056 | 55.8 | ||||
| PFED-54150/070 | 69.9 | ||||
| PFED-54150/085 | 85.3 | ||||
