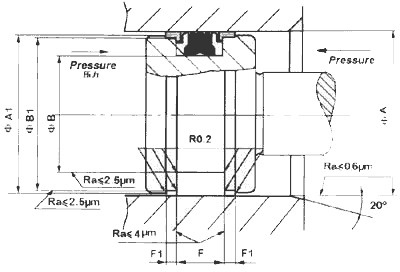

| 型号 | 缸筒直径 | 沟槽直径 | 沟槽宽度 | 活塞直径 | ||
| ah9 | bh9 | b1-0.05 | f+0.2 | f1+0.1 | a1-0.2 | |
| kdas 100-082 | 100.0 | 82.0 | 96.0 | 22.5 | 3.6 | 99.0 |
| kdas 100-086 | 100.0 | 86.0 | 96.0 | 22.5 | 5.2 | 98.5 |
| kdas 105-080 | 105.0 | 80.0 | 98.1 | 22.4 | 6.5 | 103.0 |
| kdas 110-085 | 110.0 | 85.0 | 103.1 | 22.4 | 6.35 | 108.0 |
| kdas 110-092 | 110.0 | 92.0 | 106.0 | 22.5 | 3.6 | 109.0 |
| kdas 110-096 | 110.0 | 96.0 | 106.0 | 22.5 | 5.2 | 109.4 |
| kdas 115-090 | 115.0 | 90.0 | 108.0 | 22.4 | 6.35 | 113.0 |
| kdas 115-097 | 115.0 | 97.0 | 111.0 | 22.5 | 3.6 | 114.0 |
| kdas 120-095 | 120.0 | 95.0 | 113.0 | 22.4 | 6.35 | 118.0 |
| kdas 120-106 | 120.0 | 106.0 | 116.0 | 22.5 | 5.2 | 118.5 |
| kdas 125-100 | 125.0 | 100.0 | 118.1 | 25.4 | 6.35 | 123.0 |
| kdas 125-103 | 125.0 | 103.0 | 121.0 | 26.5 | 5.2 | 124.0 |
| kdas 125-108 | 125.0 | 108.0 | 121.0 | 26.5 | 7.2 | 124.4 |
| kdas 130-105 | 130.0 | 105.0 | 122.6 | 25.4 | 9.5 | 127.5 |
| kdas 130-105 | 130.0 | 105.0 | 123.1 | 25.4 | 6.35 | 128.0 |
| kdas 135-110 | 135.0 | 110.0 | 127.6 | 25.4 | 9.5 | 132.5 |
| kdas 135-110/1 | 135.0 | 110.0 | 128.1 | 25.4 | 6.35 | 133.0 |
| kdas 140-115 | 140.0 | 115.0 | 132.6 | 25.4 | 9.5 | 137.5 |
| kdas 140-115/1 | 140.0 | 115.0 | 133.0 | 25.4 | 6.35 | 138.0 |
| kdas 140-118 | 140.0 | 118.0 | 136.0 | 26.5 | 5.1 | 139.0 |
| kdas 140-123 | 140.0 | 123.0 | 136.0 | 26.5 | 7.2 | 138.5 |
| kdas 145-120 | 145.0 | 120.0 | 137.6 | 25.4 | 9.5 | 142.5 |
| kdas 145-120 | 145.0 | 120.0 | 138.3 | 25.4 | 6.35 | 142.95 |
| kdas 150-125 | 150.0 | 125.0 | 142.6 | 25.4 | 9.5 | 147.5 |
| kdas 150-125 | 150.0 | 125.0 | 143.0 | 25.4 | 6.35 | 148.0 |
| kdas 150-128 | 150.0 | 128.0 | 146.0 | 26.5 | 5.1 | 149.0 |
| kdas 150-133 | 150.0 | 133.0 | 146.0 | 26.5 | 7.2 | 149.5 |
| kdas 155-130 | 155.0 | 130.0 | 147.6 | 25.4 | 9.5 | 152.5 |
| kdas 160-135 | 160.0 | 135.0 | 152.6 | 25.4 | 9.5 | 157.5 |
| kdas 160-138 | 160.0 | 138.0 | 156.0 | 26.5 | 5.1 | 159.0 |
| kdas 160-143 | 160.0 | 143.0 | 156.0 | 26.5 | 7.2 | 159.4 |
| kdas 165-140 | 165.0 | 140.0 | 157.6 | 25.4 | 9.5 | 162.5 |
| kdas 170-145 | 170.0 | 145.0 | 161.7 | 25.4 | 12.7 | 167.1 |
| kdas 175-150 | 175.0 | 150.0 | 166.7 | 25.4 | 12.7 | 172.1 |
| kdas 180-150 | 180.0 | 150.0 | 172.95 | 35.4 | 6.35 | 177.87 |
| kdas 180-155 | 180.0 | 155.0 | 171.7 | 25.4 | 12.7 | 177.1 |
| kdas 185-160 | 185.0 | 160.0 | 176.7 | 25.4 | 12.7 | 182.1 |
| kdas 190-165 | 190.0 | 165.0 | 181.7 | 25.4 | 12.7 | 187.0 |
| kdas 195-170 | 195.0 | 170.0 | 186.7 | 25.4 | 12.7 | 192.0 |
| kdas 200-175 | 200.0 | 175.0 | 191.6 | 25.4 | 12.7 | 197.0 |
| kdas 210-185 | 210.0 | 185.0 | 201.6 | 25.4 | 12.7 | 207.0 |
| kdas 220-190 | 220.0 | 190.0 | 212.7 | 35.4 | 6.35 | 217.0 |
| kdas 220-195 | 220.0 | 195.0 | 211.6 | 25.4 | 12.7 | 217.0 |
| kdas 230-205 | 230.0 | 205.0 | 221.6 | 25.4 | 12.7 | 227.0 |
| kdas 240-215 | 240.0 | 215.0 | 231.6 | 25.4 | 12.7 | 237.0 |
| kdas 250-220 | 250.0 | 220.0 | 242.9 | 35.4 | 6.35 | 247.85 |
| kdas 250-225 | 250.0 | 225.0 | 241.6 | 25.4 | 12.7 | 247 |
