塑料机械网-密封圈-密封件-防尘圈密封件 LBH

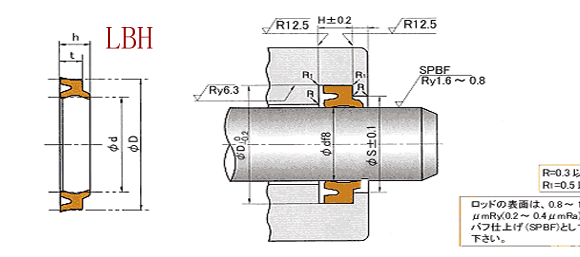

密封件尺寸				沟槽尺寸					標準（A505）		耐熱（F357）
d	D	t	h	φd	φD	φS	H	B	NOK订货号	名义号	NOK订货号	名义号
12.5	20.5	4.5	6	12.5	20.5	16.8	5	2	CL0447C1	LBH-12.5
14	22			14	22	18.3			CL0432C0	LBH-14
16	24			16	24	20.3			CL0293C0	LBH-16	CL0293C3	LBH-16F
18	26			18	26	22.3			CL0011C0	LBH-18	CL0011C6	LBH-18F
20	28			20	28	24.3			CL0017C0	LBH-20	CL0017C4	LBH-20F
22	30			22	30	26.3			CL0240C0	LBH-22
22.4	30.4			22.4	30.4	26.7			CL0026C3	LBH-22.4	CL0026C6	LBH-22.4F
25	33			25	33	29.3			CL0031C0	LBH-25	CL0031C2	LBH-25F
28	36			28	36	32.3			CL0042C0	LBH-28	CL0042C4	LBH-28F
30	38	5	6.5	30	38	34	6		CL0050C0	LBH-30	CL0050C3	LBH-30F
31.5	39.5			31.5	39.5	35.5			CL0054C0	LBH-31.5	CL0054C3	LBH-31.5F
32	40			32	40	36			CL0363C0	LBH-32	CL0363C3	LBH-32F
35	43			35	43	39			CL0066C1	LBH-35	CL0066C4	LBH-35F
35.5	43.5			35.5	43.5	39.5			CL0072C0	LBH-35.5	CL0072C4	LBH-35.5F
36	44			36	44	40			CL0335C1	LBH-36
40	48			40	48	44			CL0077C2	LBH-40	CL0077C4	LBH-40F
45	53			45	53	49			CL0085C0	LBH-45	CL0085C4	LBH-45F
50	58			50	58	54			CL0087C3	LBH-50	CL0087C5	LBH-50F
53	61			53	61	57			CL0100C0	LBH-53	CL0100C2	LBH-53F
55	63			55	63	59			CL0104C0	LBH-55	CL0104C2	LBH-55F
56	64			56	64	60			CL0105C1	LBH-56	CL0105C4	LBH-56F
60	68			60	68	64			CL0107C0	LBH-60	CL0107C2	LBH-60F
63	71			63	71	67			CL0109C1	LBH-63	CL0109C3	LBH-63F
65	73			65	73	69			CL0115C0	LBH-65	CL0115C2	LBH-65F
67	75			67	75	71			CL0118C1	LBH-67
70	80	6	8	70	80	75	7	3	CL0121C0	LBH-70	CL0121C3	LBH-70F
71	81			71	81	76			CL0125C0	LBH-71	CL0125C2	LBH-71F
75	85			75	85	80			CL0127C0	LBH-75	CL0127C2	LBH-75F
80	90			80	90	85			CL0138C1	LBH-80	CL0138C3	LBH-80F
85	95			85	95	90			CL0142C0	LBH-85	CL0142C3	LBH-85F
90	100			90	100	95			CL0149C0	LBH-90	CL0149C4	LBH-90F
95	105			95	105	100			CL0152C0	LBH-95	CL0152C3	LBH-95F
100	110			100	110	105			CL0154C2	LBH-100	CL0154C4	LBH-100F
105	115			105	115	110			CL0476C0	LBH-105
106	116			106	116	111			CL0162C0	LBH-106
110	120			110	120	115			CL0448C0	LBH-110	CL0448C2	LBH-110F
112	122			112	122	117			CL0166C2	LBH-112	CL0166C3	LBH-112F
115	125			115	125	120			CL0478C0	LBH-115
118	128			118	128	123			CL0466C0	LBH-118
125	138	7	9.5	125	138	132	8		CL0171C0	LBH-125	CL0171C3	LBH-125F
132	145			132	145	139			CL0174C0	LBH-132
140	153			140	153	147			CL0179C1	LBH-140	CL0179C4	LBH-140F
145	158			145	158	152			CL0182C0	LBH-145
150	163			150	163	157			CL0185C0	LBH-150
160	173			160	173	167			CL0188C1	LBH-160	CL0188C3	LBH-160F
160	174			160	174	167			CL0487C0	LBH-160A
165	178			165	178	172			CL0190C0	LBH-165
170	185	11	14	170	185	178	12	5	CL0191C0	LBH-170A
175	188	7	9.5	175	188	182	8	3	CL0193C0	LBH-175
180	193			180	193	187			CL0196C1	LBH-180	CL0196C4	LBH-180F
180	194			180	194	187			CL0489C0	LBH-180A
200	213			200	213	207			CL0199C1	LBH-200	CL0199C3	LBH-200F
205	218			205	218	212			CL0446C0	LBH-205
210	223			210	223	217			CL0324C1	LBH-210
224	237			224	237	231			CL0204C1	LBH-224	CL0204C2	LBH-224F
240	256	10	13	240	256	248	11	4	CL0300C0	LBH-240
250	266	9	12	250	266	258	10		CL0207C0	LBH-250A
250	266	10	13	250	266	258	11		CL0267C0	LBH-250
280	296	9	12	280	296	288	10		CL0212C0	LBH-280A	CL0212C2	LBH-280AF
355	375	10	14	355	375	365	11	5	CL0301C0	LBH-355A
500	520	11.5	15.5	500	520	510	12.5	5	CL0460C0	LBH-500
